| PERFORMANCE |
| Processor |
Intel® Core™ i5-13400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.6GHz, E-core 1.8 / 3.3GHz, 20MB |
| Graphics |
Integrated Intel® UHD Graphics 730 |
| Chipset |
Intel® B660 Chipset |
| Memory |
1x 16GB UDIMM DDR4-3200 |
| Memory Slots |
Two DDR4 UDIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR4-3200 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Support |
Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB |
| Card Reader |
7-in-1 Card Reader |
| Optical |
DVD±RW |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers |
1Wx1 |
| Power Supply |
180W 85% |
| DESIGN |
| Keyboard |
USB Calliope Keyboard, Black, Hungarian |
| Mouse |
USB Calliope Mouse, Black |
| Expansion Slots |
- One PCIe® 4.0 x16, low-profie (length < 167.65mm, height < 68.90mm)
- One PCIe® 3.0 x1, low-profie (length < 167.65mm, height < 68.90mm)
- Two M.2 slots (one for WLAN, one for SSD)
|
| Case Color |
Black |
| Stand |
None |
| Pen |
Pen Not Supported |
| Form Factor |
SFF (7.4L) |
| Dimensions (WxDxH) |
100 x 308 x 274.8 mm (3.9 x 12.1 x 10.8 inches) |
| Weight |
Around 4.5 kg (9.9 lbs) |
| CONNECTIVITY |
| Ethernet |
Integrated 100/1000M |
| WLAN + Bluetooth |
None |
| WWAN |
Non-WWAN |

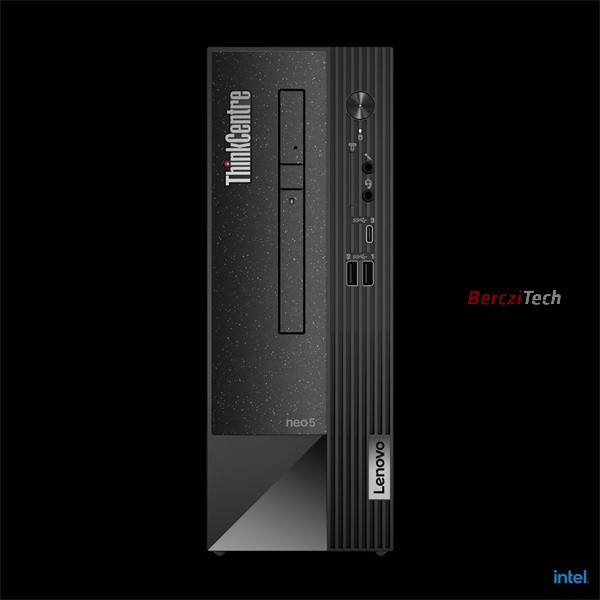

| Front Ports |
- 1x USB-C® 3.2 Gen 1 (support data transfer and 5V@3A charging)
- 2x USB 3.2 Gen 1
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|
| Optional Front Ports (configured) |
1x card reader |
| Rear Ports |
- 2x USB 2.0
- 2x USB 3.2 Gen 1 (one supports Smart Power On)
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) |
None |
| Monitor Cable |
None |
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified |
| Fingerprint Reader |
No fingerprint reader |
| Physical Locks |
- Kensington® Security Slot™, 3 x 7 mm
- Padlock Loop
|
| Smart Cable Clip |
None |
| Chassis Intrusion Switch |
Chassis Intrusion Switch |
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
5Y Onsite upgrade from 1Y Courier/Carry-in Promo(CPN) |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- EPEAT™ Silver Registered
- ErP Lot 3
- RoHS compliant
- TCO Certified
|
| SOFTWARE |
| Operating System |
Windows® 11 Pro, Hungarian / English |
| Bundled Software |
None |
| ACCESSORIES |
| Bundled Accessories |
None |
| MODEL INFORMATION |
| Model |
12JF0018HX |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0197532061460 |
| Announce Date |
2023-07-07 |
| End of Support |
2029-09-27 |
